Product Highlights:

Grade A AUO Industrial LCD panel
Resistive Touchscreen with 3M Controller
DVI-D, Composite & S-Video input





17" Touch Industrial Panel mount LCD with VGA + DVI and AV input w/ USB Resistive Touch (Model: RPM1700-AV-TSR-U)

Industrial applications may be the most demanding environment for LCD's and flat panel displays. Whether your requirement is for a display for your console, an HMI, a CRT replacement or any factory automation process, i-Tech has the product for you. Combining our engineering expertise with the latest in flat panel display technology, finding the right options for your unique application is simple. The panel mount LCD offers rugged construction, superior image quality, extended product life cycle, rear controls and agency certifications. Select optional touch screens, protective glass and films, NTSC/PAL and S-Video connections, brightness enhancements, NEMA or VESA mounting solutions. i-Tech can customize your panel mount display providing custom colors, private labels, silk-screens, special power requirements and customized warranty and service programs.


Features

• A-Si Active Matrix TFT Color LCD Panel
• VGA and DVI connections, optional NTSC/PAL, S-Video
• Lightweight but rugged design
• Perfect for VARs, System Integrators and OEM's
• Optional Touch Screen - Capacitive, Resistive or SAW
• Available with Protective Shields (AR/AG or Clear) or Privacy Shields
• Detects the sync type (separate, composite or sync on green automatically)
• Superb Quality - clear, bright, high contrast ratio with wide viewing angle

Specs:

LCD Size : 17.0"
Standard Resolution : 1280 x 1024
Pixel Pitch : 0.264 mm
Pixel Arrangement : RGB Vertical Stripe
Brightness (typical) : 500:1
Aspect Ratio : 4:3
Response Time (typical) : 8 ms

For Full Specification list click HERE!

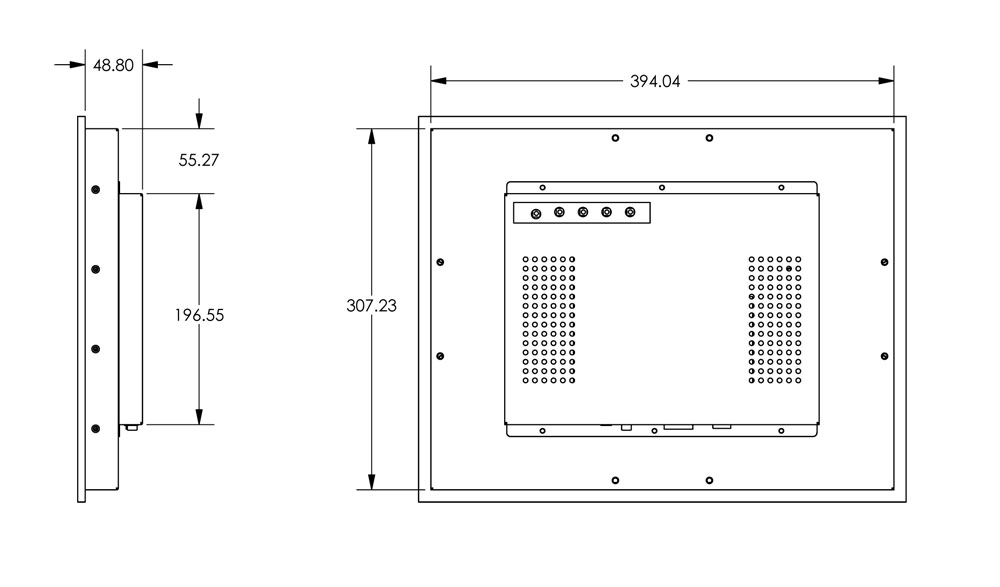

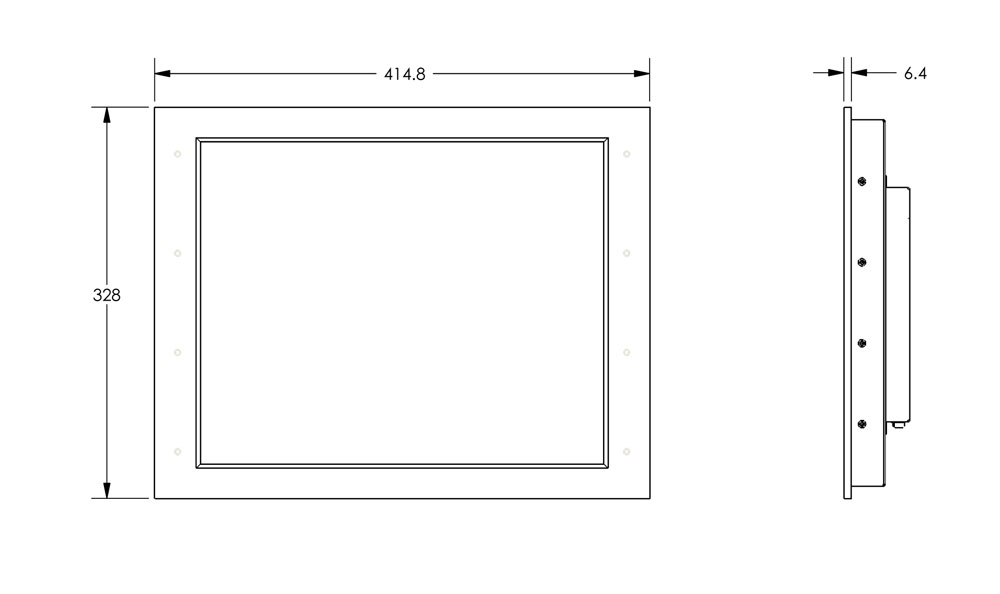

        Mechanical Drawings:

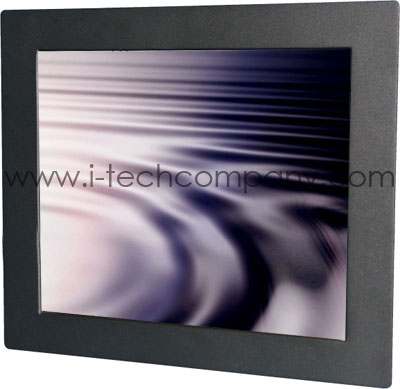

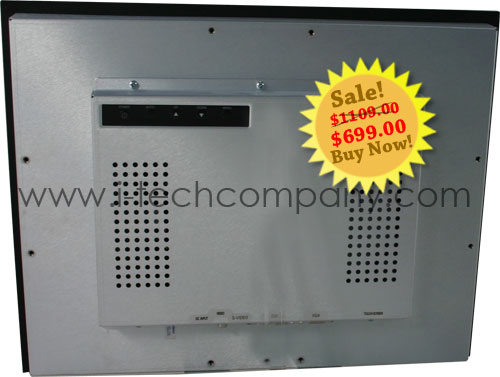

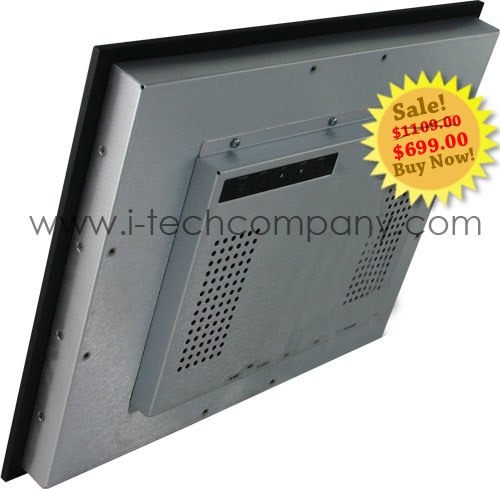

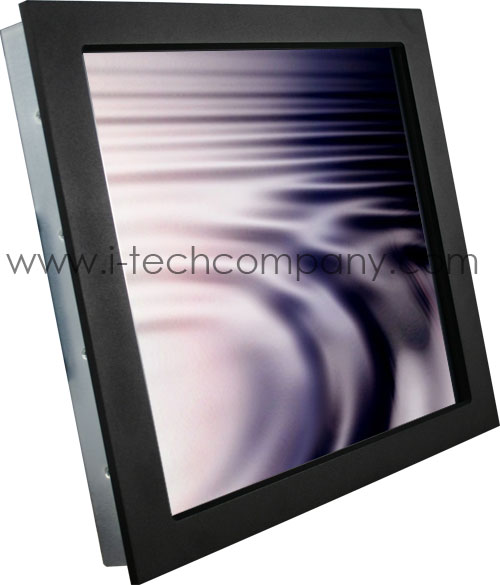

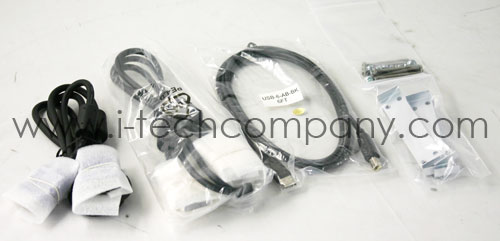

        Photos:
